Serial Cable Wiring

Updated March 9, 2021. Written for LMS Version 6.2.

The following charts contain the pin outs for straight-through cables, rolled cables, and the required LEO-PA adapter.

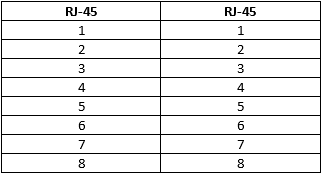

Straight-Through Cable - ADU ↔BDU, BDU Iridium ↔LEO-PA Adapter

Straight-Through Cable

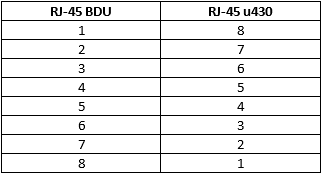

Rolled Cable - BDU GPS ↔Uplogix 430 Local Manager

Rolled Cable

DB-9 to RJ-45 - LEO-PA Adapter

LEO-PA

Updated March 9, 2021. Written for LMS Version 6.2.
Find an error? Need more detail? Send feedback to docs@lantronix.com so we can improve our documentation.
